Dynabreeze Low Pressure Fan Misting Ring 350mm

$94.95

SKU: DMR-350

SKU: DMR-350

  • Easy Cooling Solution: Quickly attaches to most 400mm+ fans, instantly adding a refreshing mist for outdoor cooling.
  • Simple to Use: Connects to a standard hose, requiring no special pumps or tools for operation.
  • Effective Relief: Transforms any fan into a misting fan, providing affordable relief from hot weather.
Quantity:
Afterpay

4 fortnightly payments of

Zippay

4 fortnightly payments of

PayPal

4 fortnightly payments of

Description

Dynabreeze Low Pressure Fan Misting Ring 350mm

Dynabreeze Low Pressure Fan Misting Ring 350mm creates an evaporative cooling effect. It can be mounted to a wall, pedestal, drum or floor fan over 400mm in size. The misting ring has a 0.5-micron inline filter to eliminate blockages and three anti-drip fine mist nozzles. It is easy to set up and perfect for hospitality, events or household use. The misting ring can be connected to a standard garden hose.

**Fan not included

Looking for other fan items? Look into our Fan Accessories for more items like this.

Key Features

  • 350mm Low-Pressure Misting Ring
  • Creates an evaporative cooling effect
  • Mount to wall, pedestal, drum or floor fans over 400mm
  • 0.5-micron inline filter to eliminate blockages
  • 3 Anti-drip fine mist nozzles
  • Easy set up
  • Perfect for hospitality, events or household use
  • Connect to standard garden hose

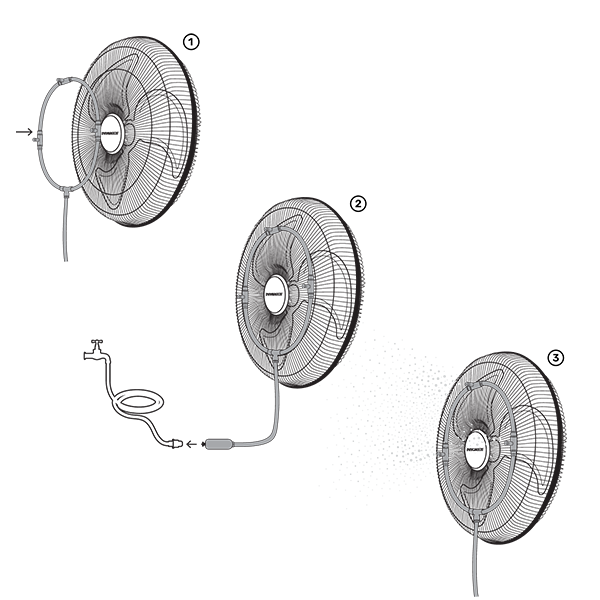

How to Use

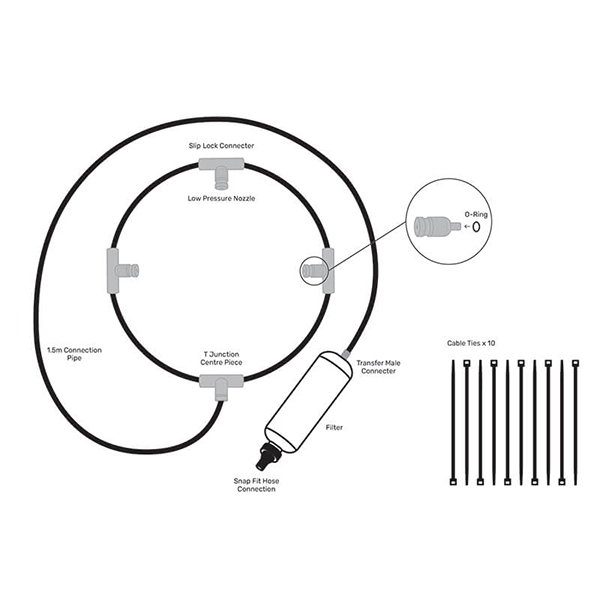

  • Assembly: Remove all contents from the box and ensure all parts are included. Insert the combined pipe and filter into the t-junction center piece.
  • Installation: Secure the misting ring centrally onto the face of the fan (400mm or larger) using the supplied cable ties and trim off any excess. Ensure the 3 nozzles are facing straight out and away from the fan motor.
  • Operation: Connect the hose connection to the water supply. Turn on the fan first, then turn on the water supply. Ensure that any wind is behind the fan.
  • Shut Down: To turn off the mist, first turn off the water supply and then turn off the fan to prevent water from spraying onto the fan motor.

Guides

Specifications

Name Dynabreeze 350mm Low Pressure Misting Ring
Available In AU
Box Dimensions 362 x 60 x 363mm
Weight 0.8Kg
Warranty 1 Year Factory Warranty
Model FA-29114
Diameter of Ring 350mm
Max Flow 1.892LMP
Pressure 30-125psi
Max Temperature 30ºC
Nozzle Orifice 0.3mm

Precautions

  • Before fitting the misting ring to the fan, connect to a hose and check for any leaks to ensure the fittings are sealed correctly.
  • This product is intended for use with mains pressure water.
  • Ensure the fan is on before turning on the water supply.
  • Ensure the nozzles are facing out and away from the fan motor.
  • Remove water source before moving or cleaning it.
  • Do not touch any electrical switch or plug with wet hands.
  • Do not drop or insert any objects into openings in the product.

FAQ

What size fan is compatible with the Dynabreeze 350mm Low Pressure Misting Ring?

The Dynabreeze 350mm Low Pressure Misting Ring is designed to be compatible with fans that are 400mm or larger in size. Ensure the misting ring is securely attached to the face of the fan, following the instructions provided in the user manual. Using it on a smaller fan could reduce the effectiveness of the misting or damage the unit.

How do I adjust the mist output of the Dynabreeze 350mm Low Pressure Misting Ring?

The mist output is primarily controlled by your water pressure. Therefore, ensure your water pressure is between 30-125psi.

You cannot directly adjust the nozzle output, but adjusting the fan speed will help disperse the mist more effectively. Inspect the nozzles frequently and clean the small nozzles to ensure they are not clogged.

What is the best way to maintain my Dynabreeze 350mm Low Pressure Misting Ring?

Regularly inspect the nozzles for any blockages and clean them as needed, due to the nozzles being extremely fine, you can place the hose in a bucket with vinegar and turn it on, this will clean the nozzles effectively. Ensure the combined pipe filter is also checked regularly to prevent blockages. Store the misting ring in a clean, dry place when not in use to prevent damage and prolong its lifespan.

Did not find what you are looking for? Have a look at other fans available in our store.

Additional information
Weight 0.8 kg
Dimensions 7 × 7 × 43 cm
Brand

Dynabreeze

ALL Product Type

Fans
